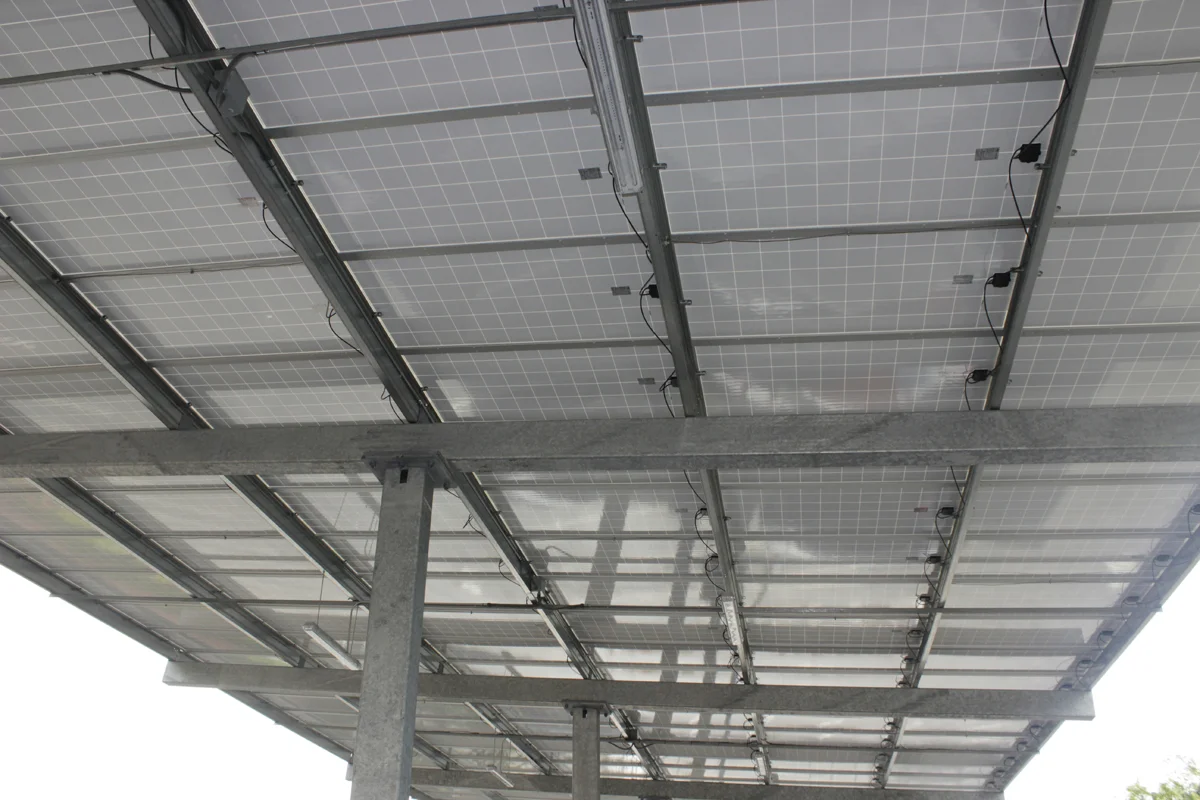

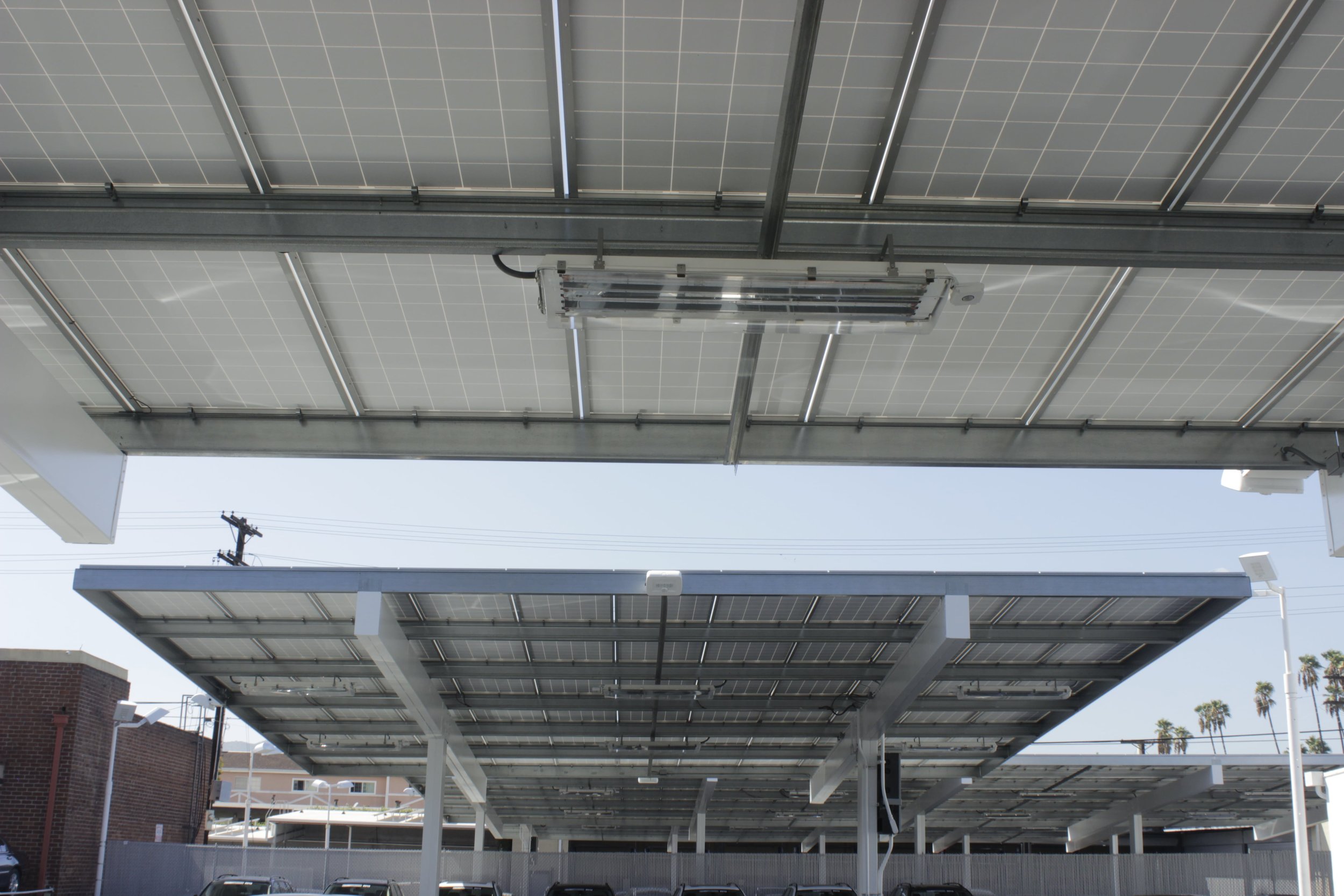

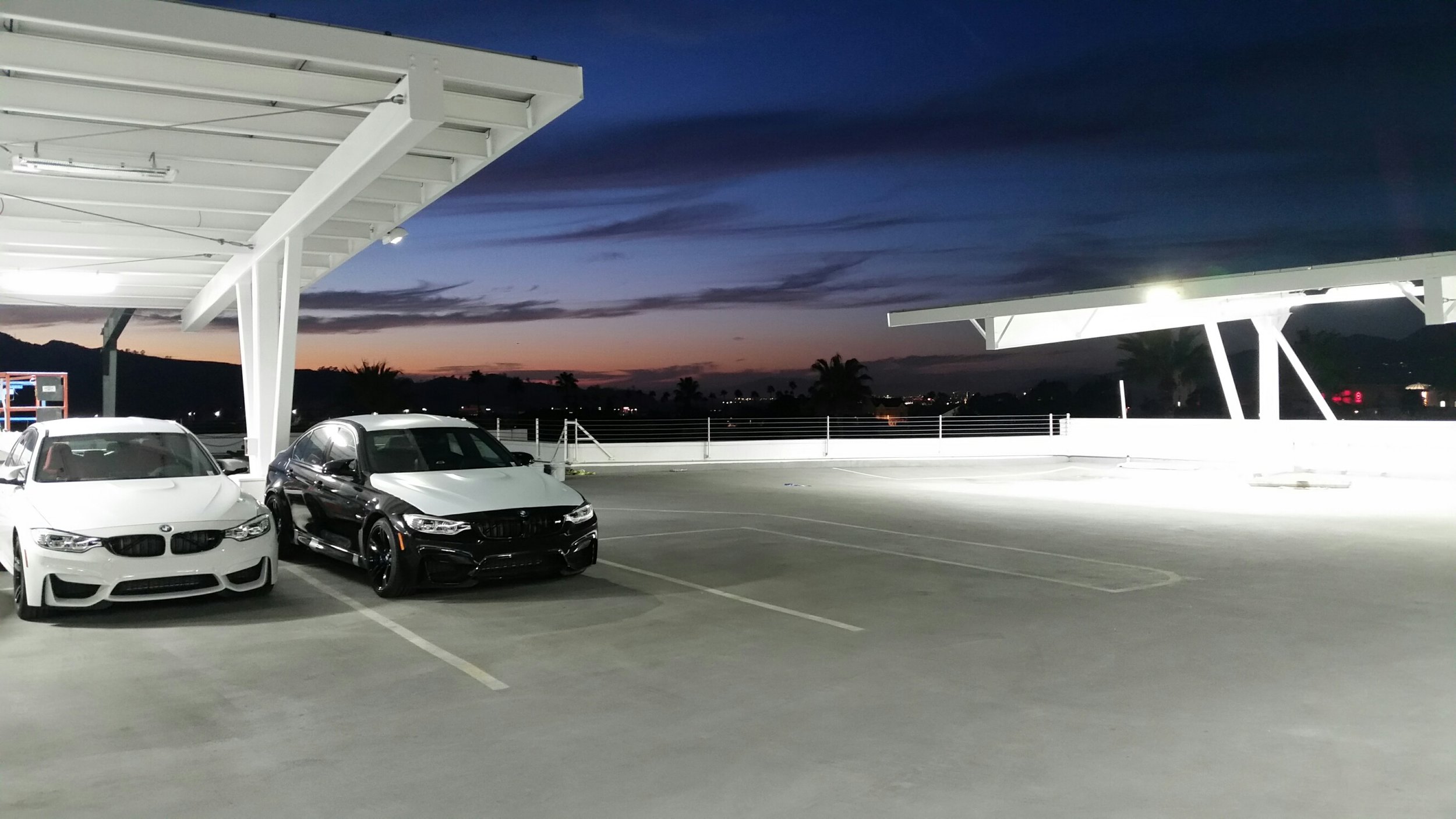

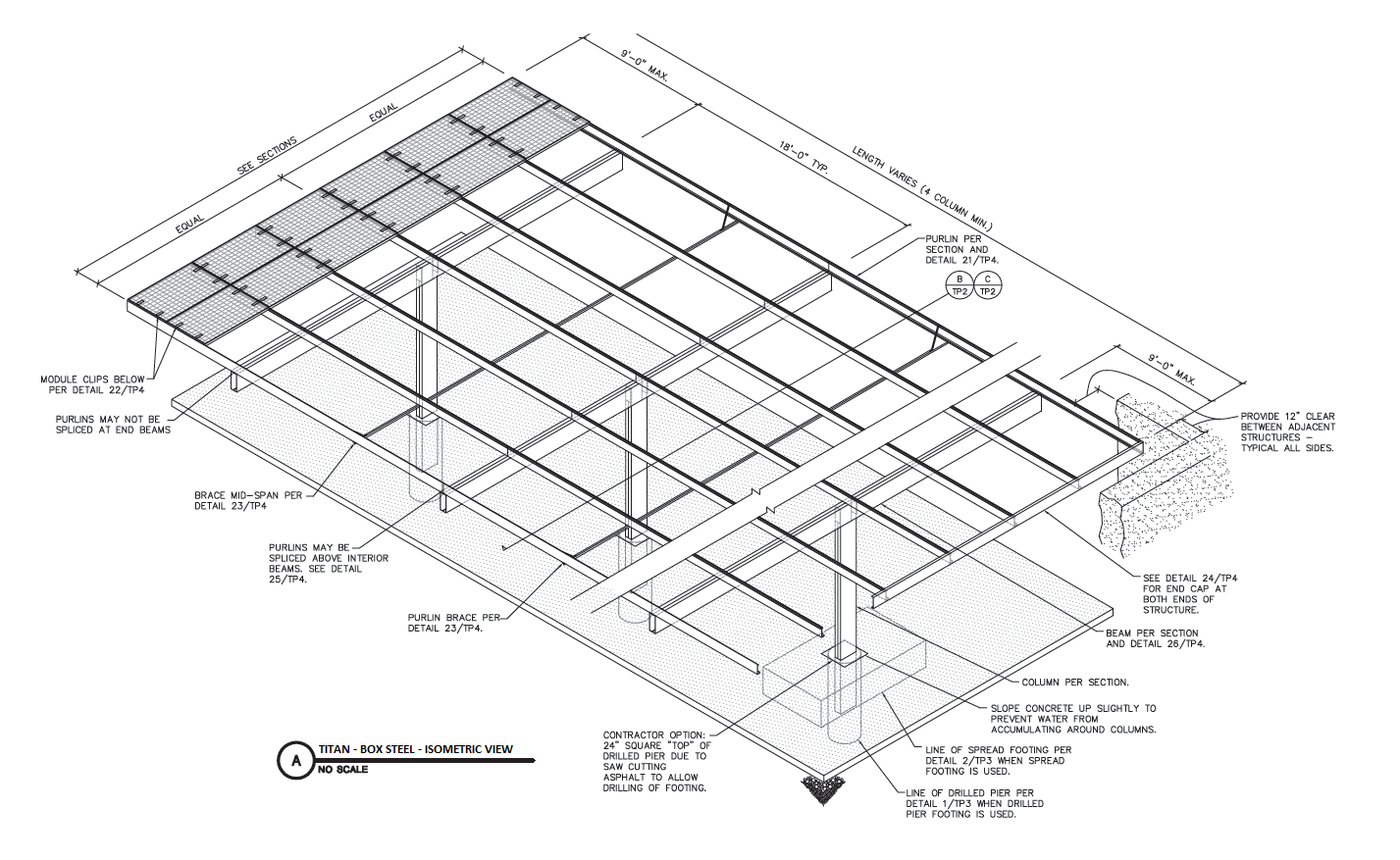

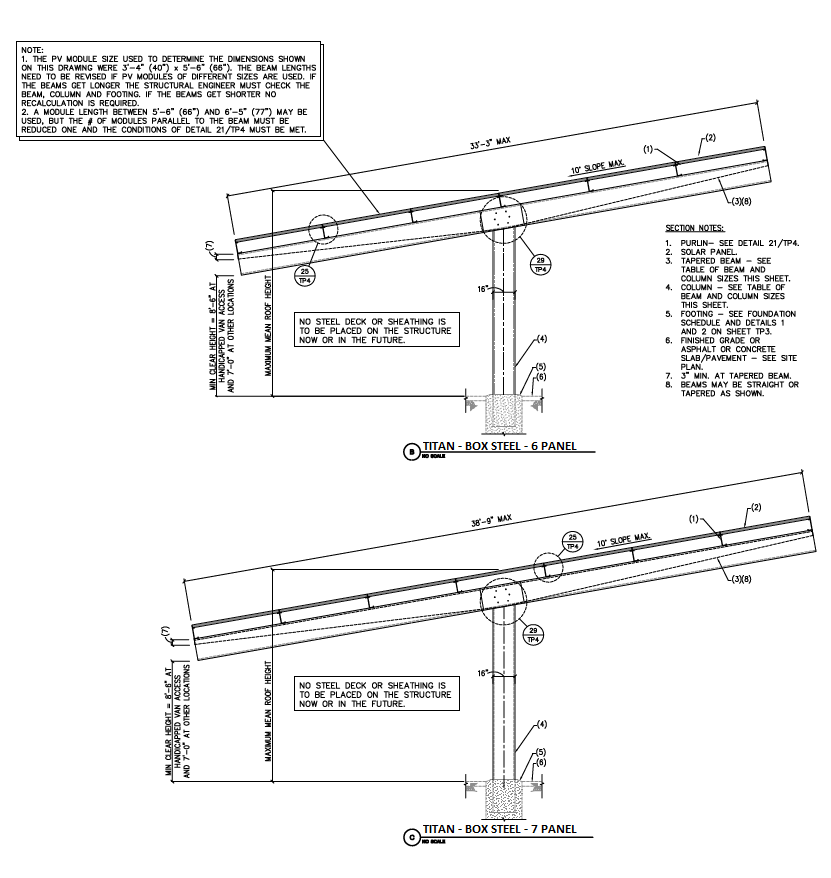

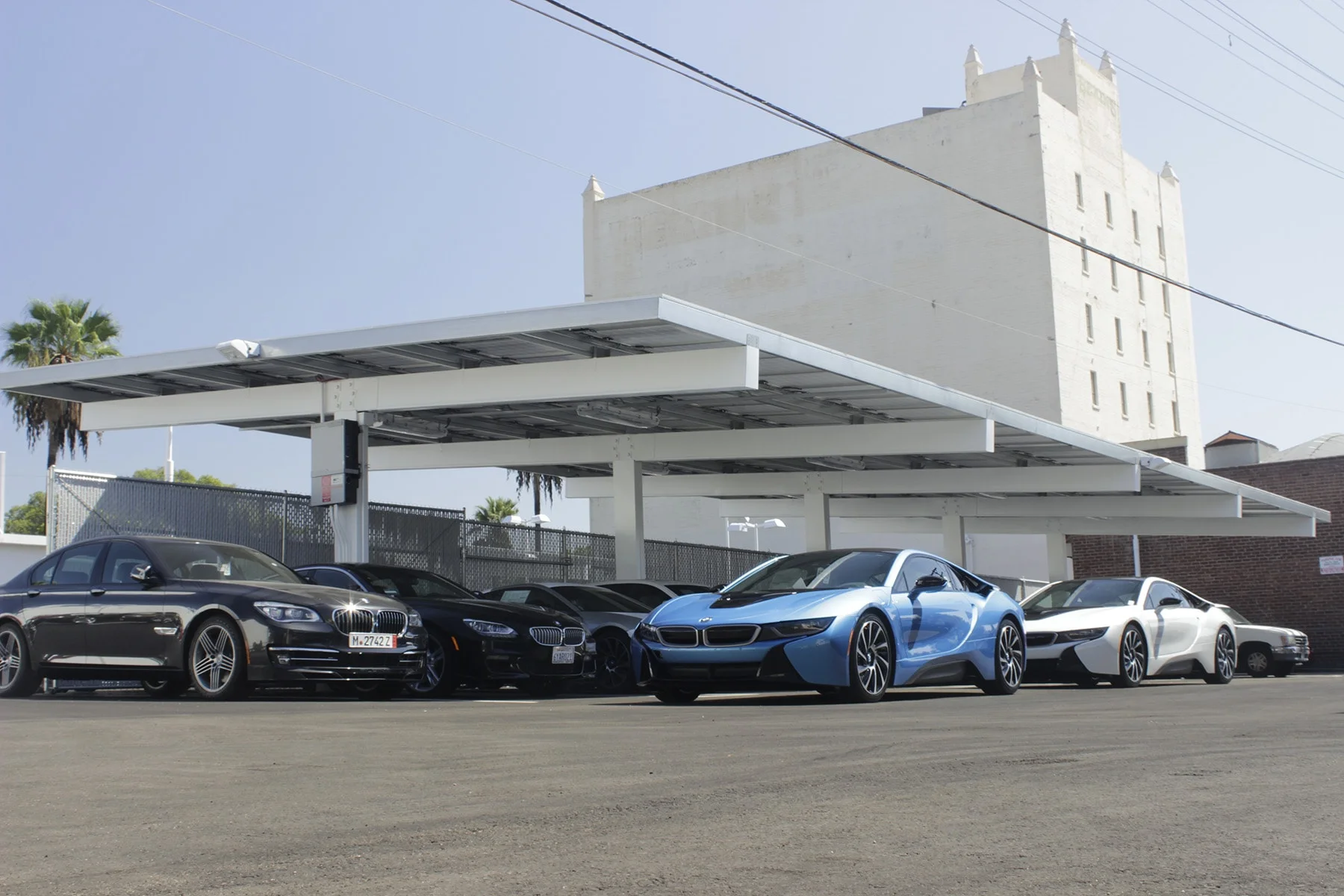

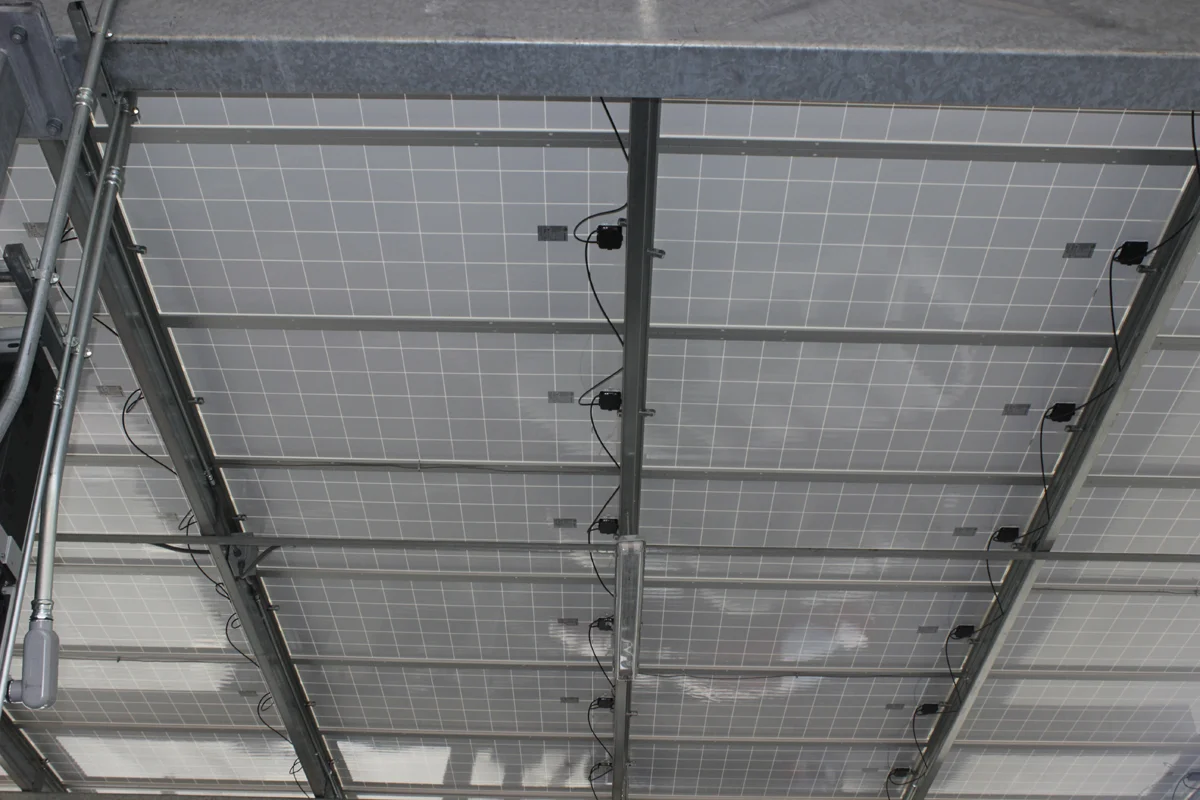

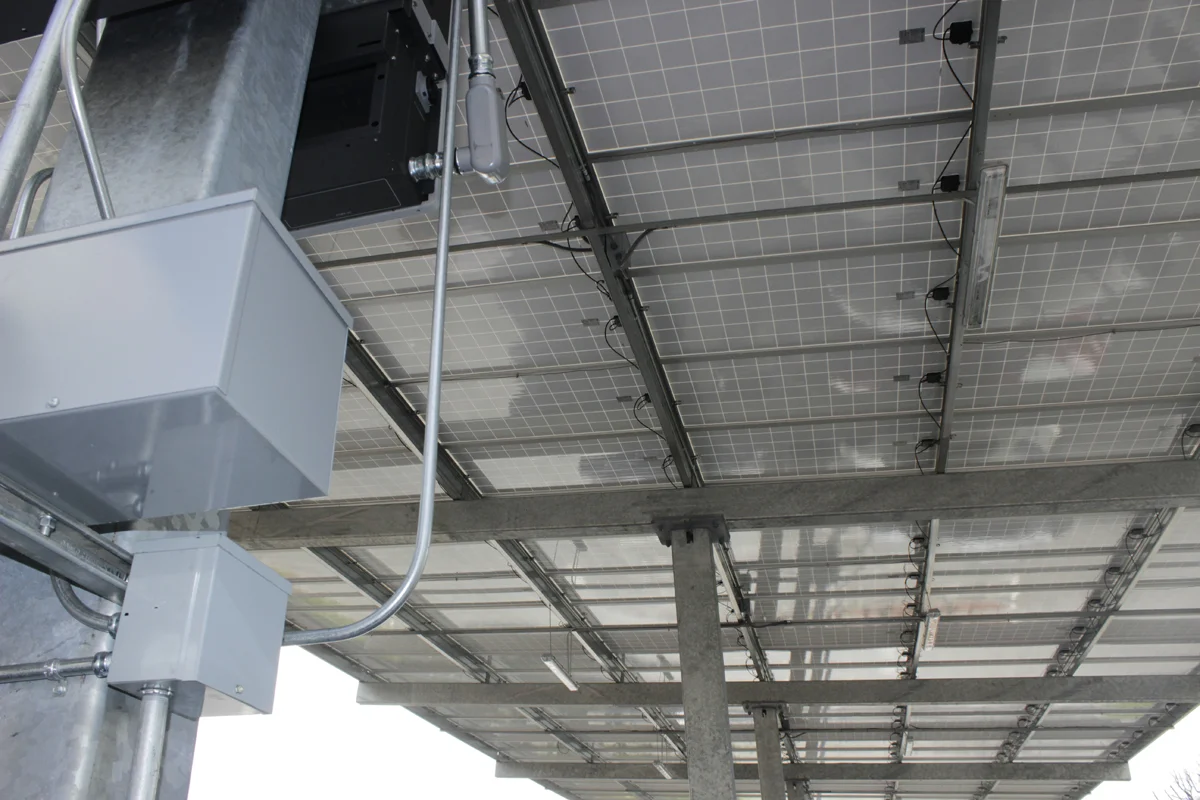

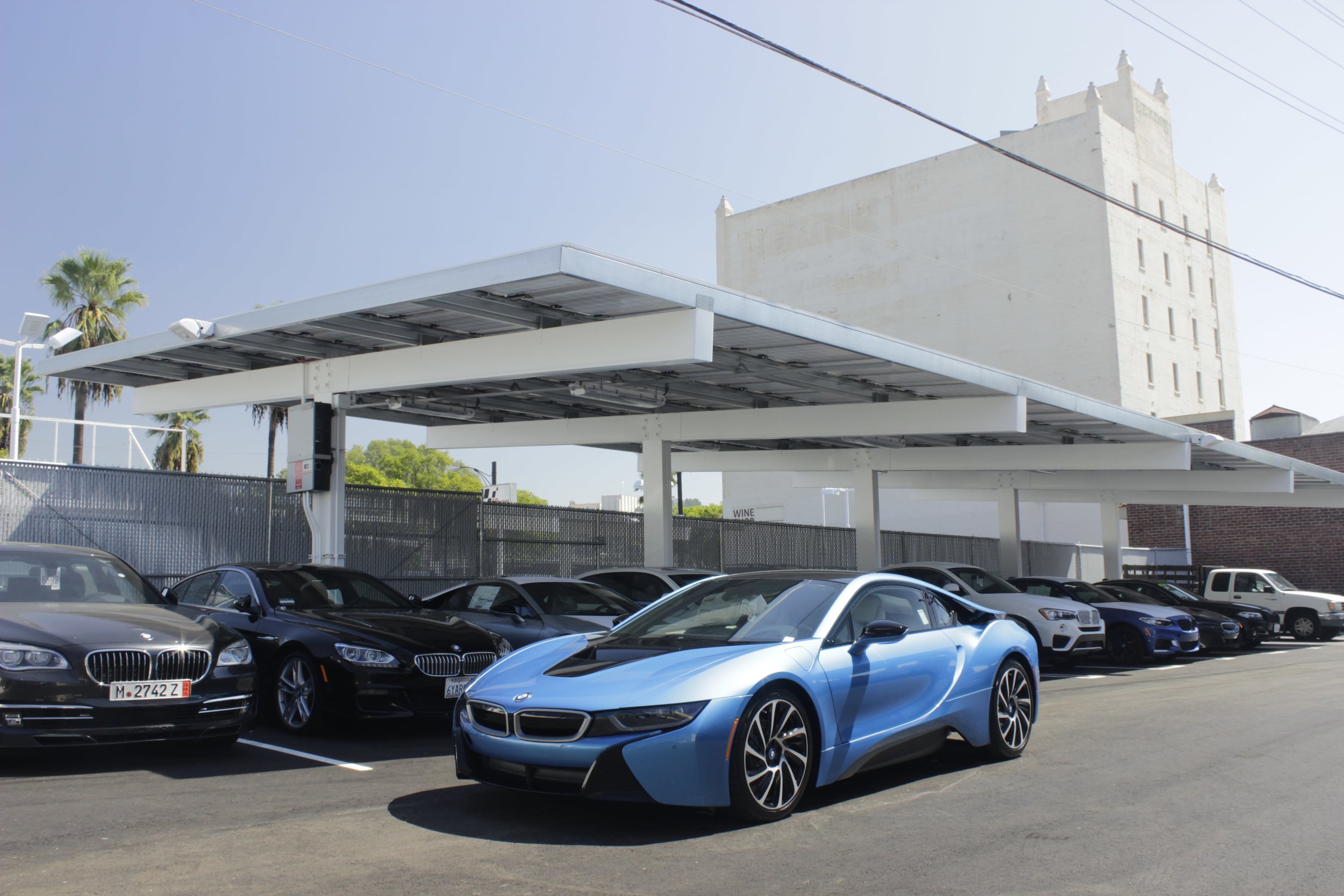

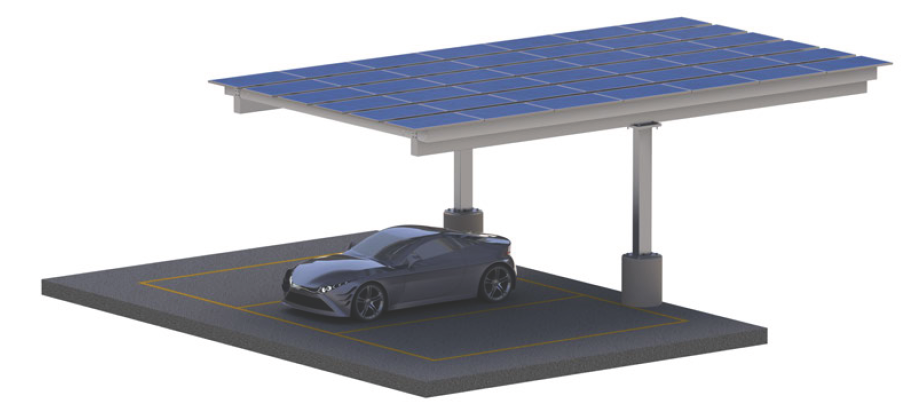

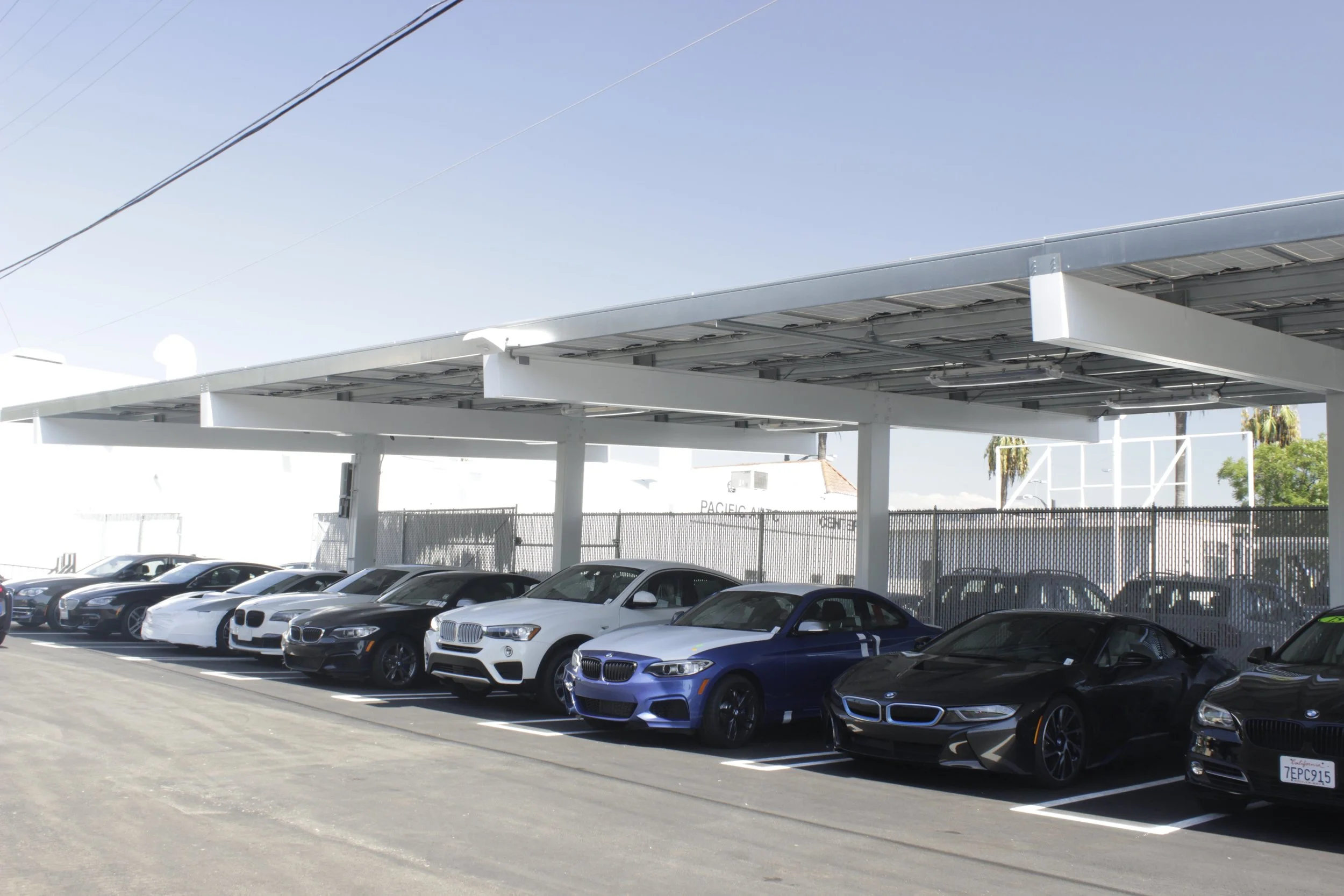

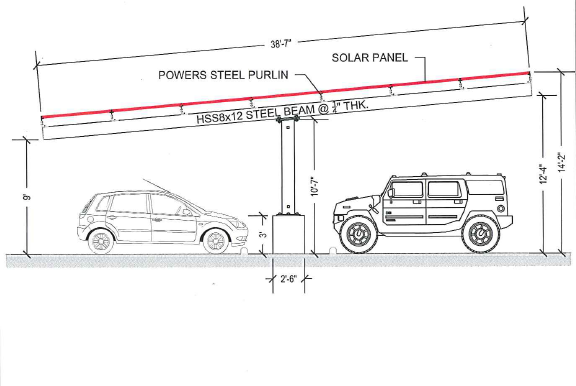

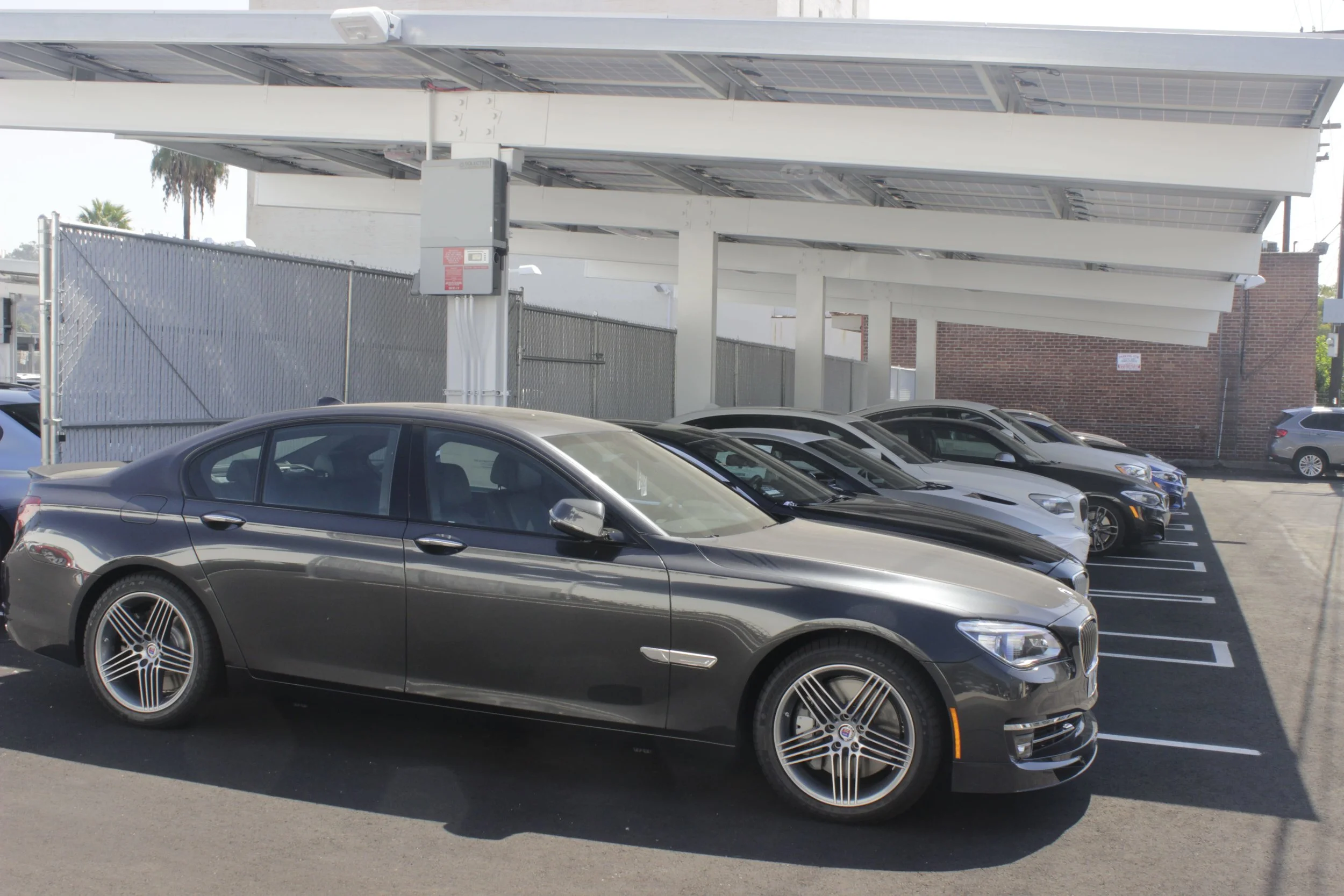

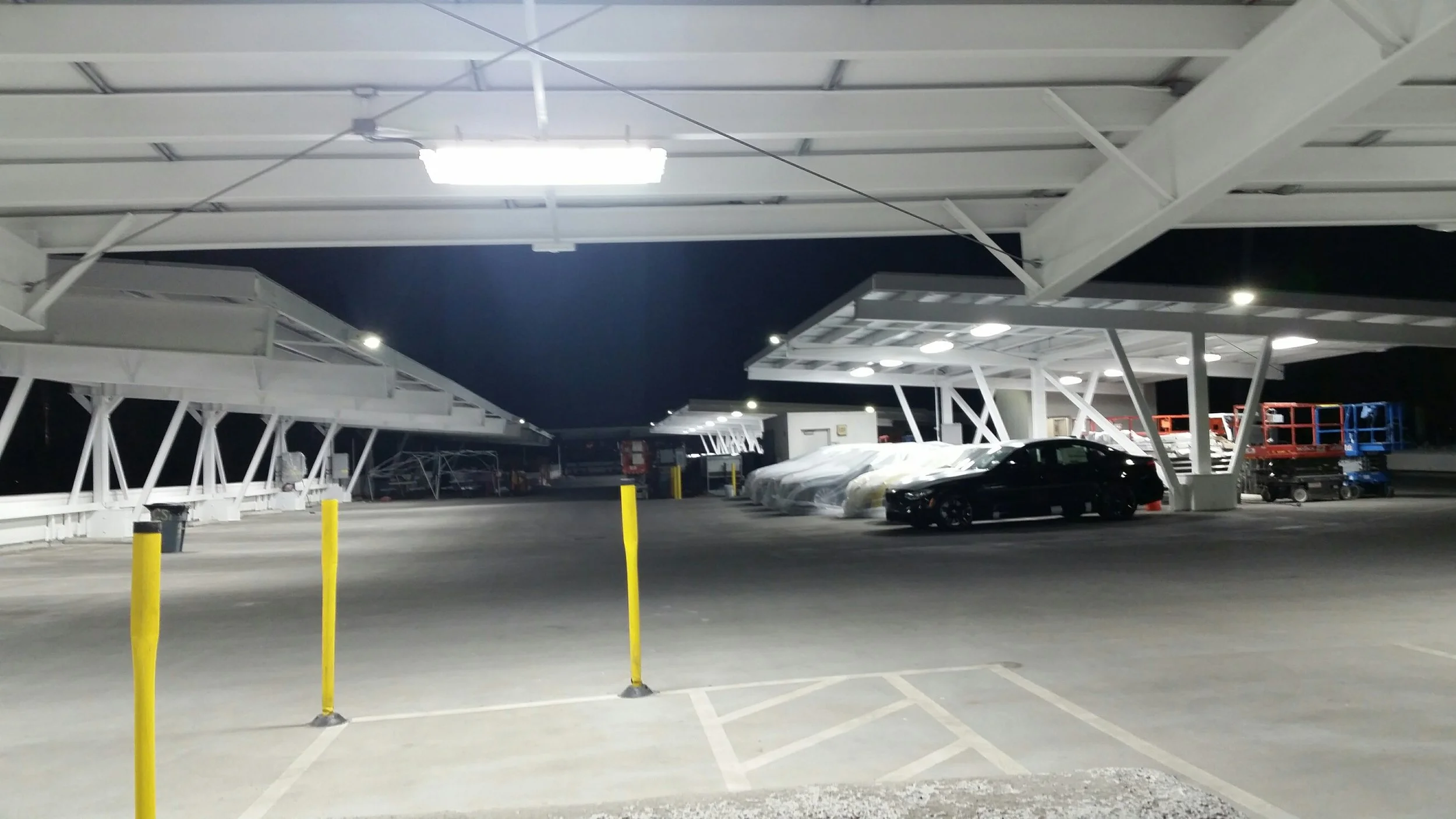

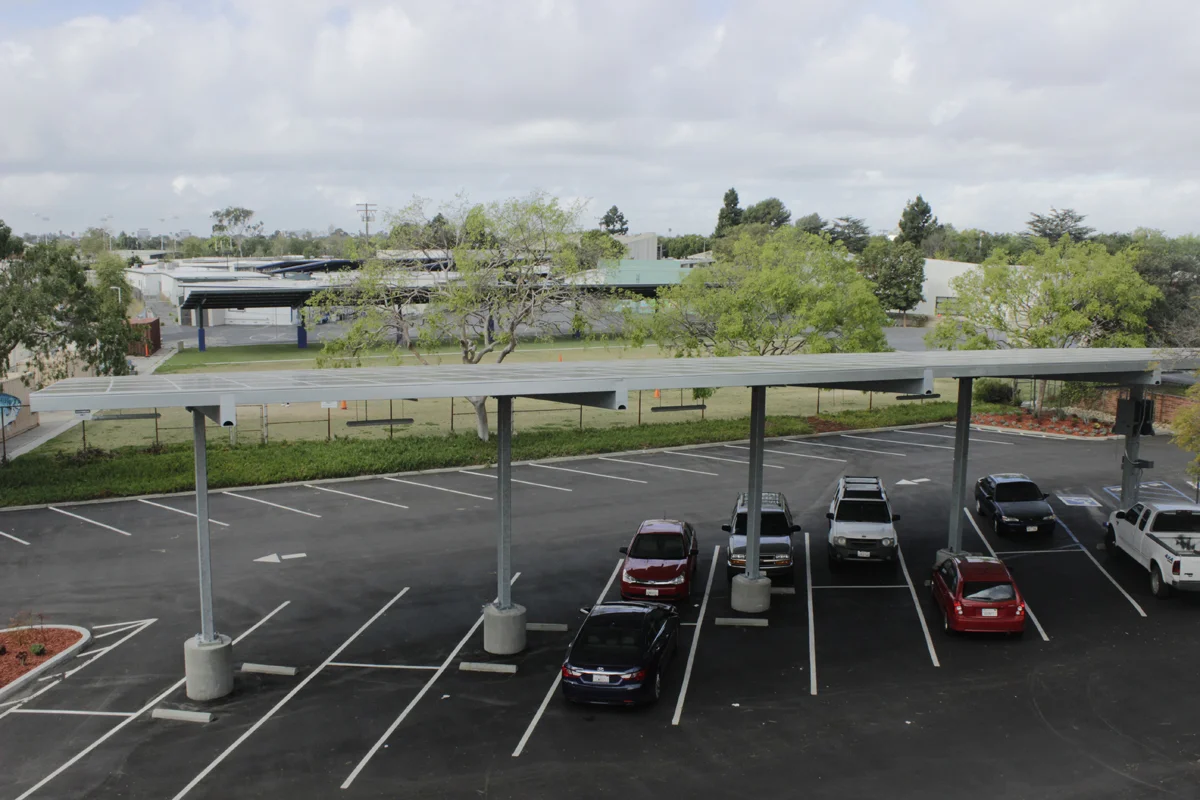

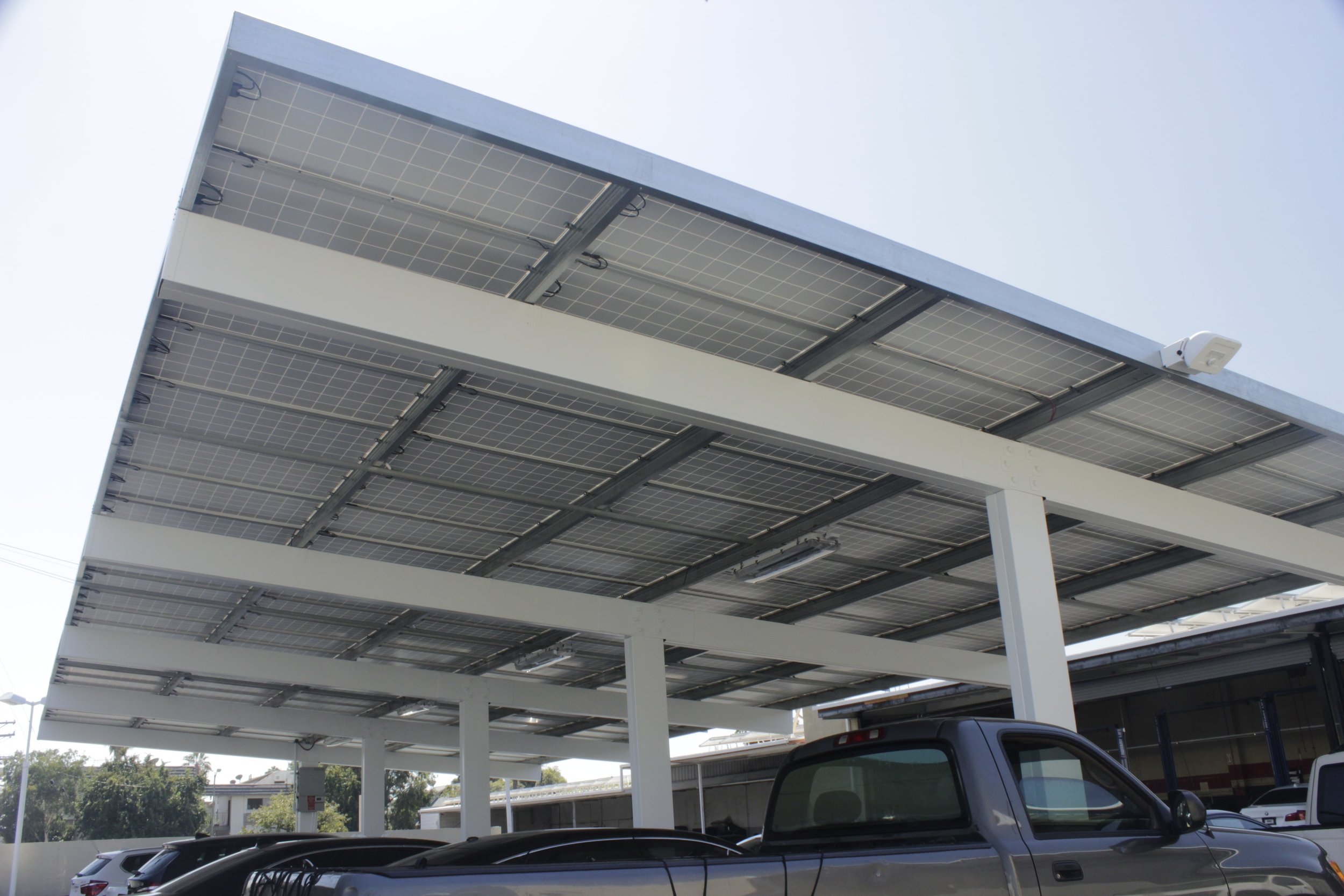

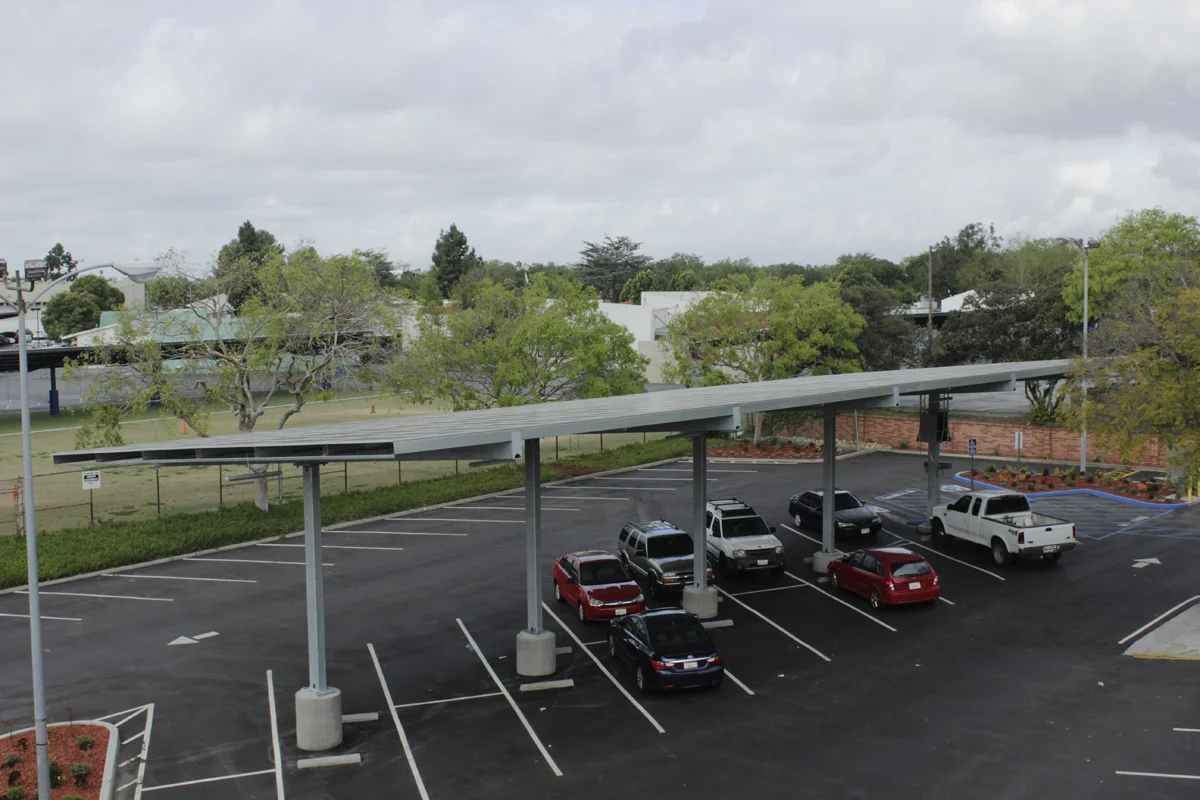

The TITAN "T-Cantilever" is a double column, double cantilever carport system.

TITAN is designed for parking arrays of two rows. One Titan can provide shade for a total of 4 parking spots, side by side and nose to nose.

DESIGN CRITERIA

Project specific engineering ensures the best product for your needs

COLUMNS

10 Gauge Galvanized Box Steel

BEAM

10 Gauge Galvanized Box Steel

PURLINS

Galvanized or Plain Steel

OPTIONS:

Tilt Angles Available: 0°, 5°, & 10°

Site Specific Layout and Configuration

Soft Lit Under Sheeting

Lighting

Branding and Advertising

Charging Stations

DESIGN CRITERIA

Modular Designs up to 110mph wind

Custom Engineering available for higher wind speeds

All codes compliant with ASCE 7-10

COLUMNS

A500-B round

A53 Grade A

BEAM

HSS AISC Grade A-36

Coating Options: Primed or Hot Dip

Galvanized

PURLINS

16 GA. AISI Cold Rolled G-90 Galvanized Steel

FOUNDATION (BELLOW GRADE)

Footing Type: Reinforced concrete caisson foundation or spread footing, structurally designed per soil conditions.

Concrete Strength: 2,500 psi (minimum)

Note: Structural foundation design is not included

Additional engineering services available in select locations upon request

OPTIONS:

Fixed Tilt Slope Up to 10˚

Site Specific Layout and Configuration

Hot Dip Galvanizing

Solar Racking

Soft Lit Under Sheeting

Lighting

Branding and Advertising

Charging Stations

• HOT Dipped Galvanized or G90 steel, with Excellent Outdoor and Marine Environment Protection

• Modular; may be constructed side by side to reduce amount of columns

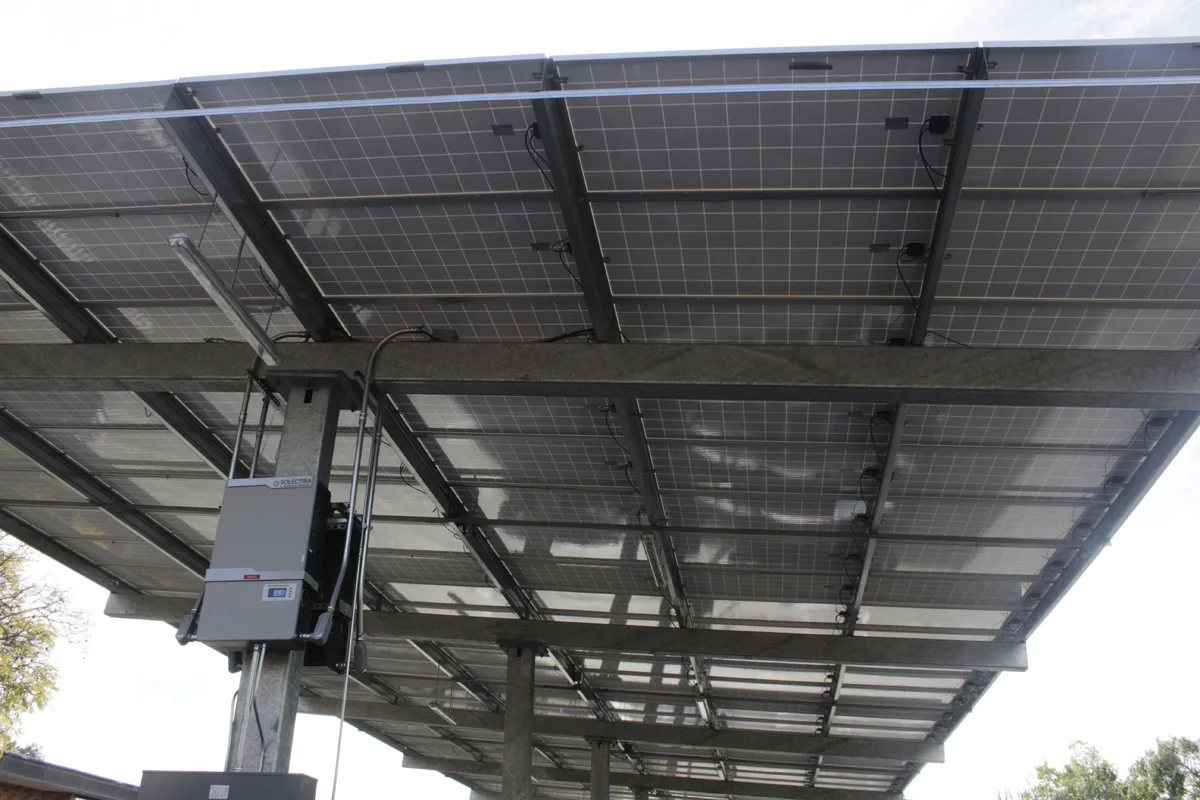

• Slide-In Solar Purlins Drastically Reduce Installation Time

• Shades two rows of cars instead of one

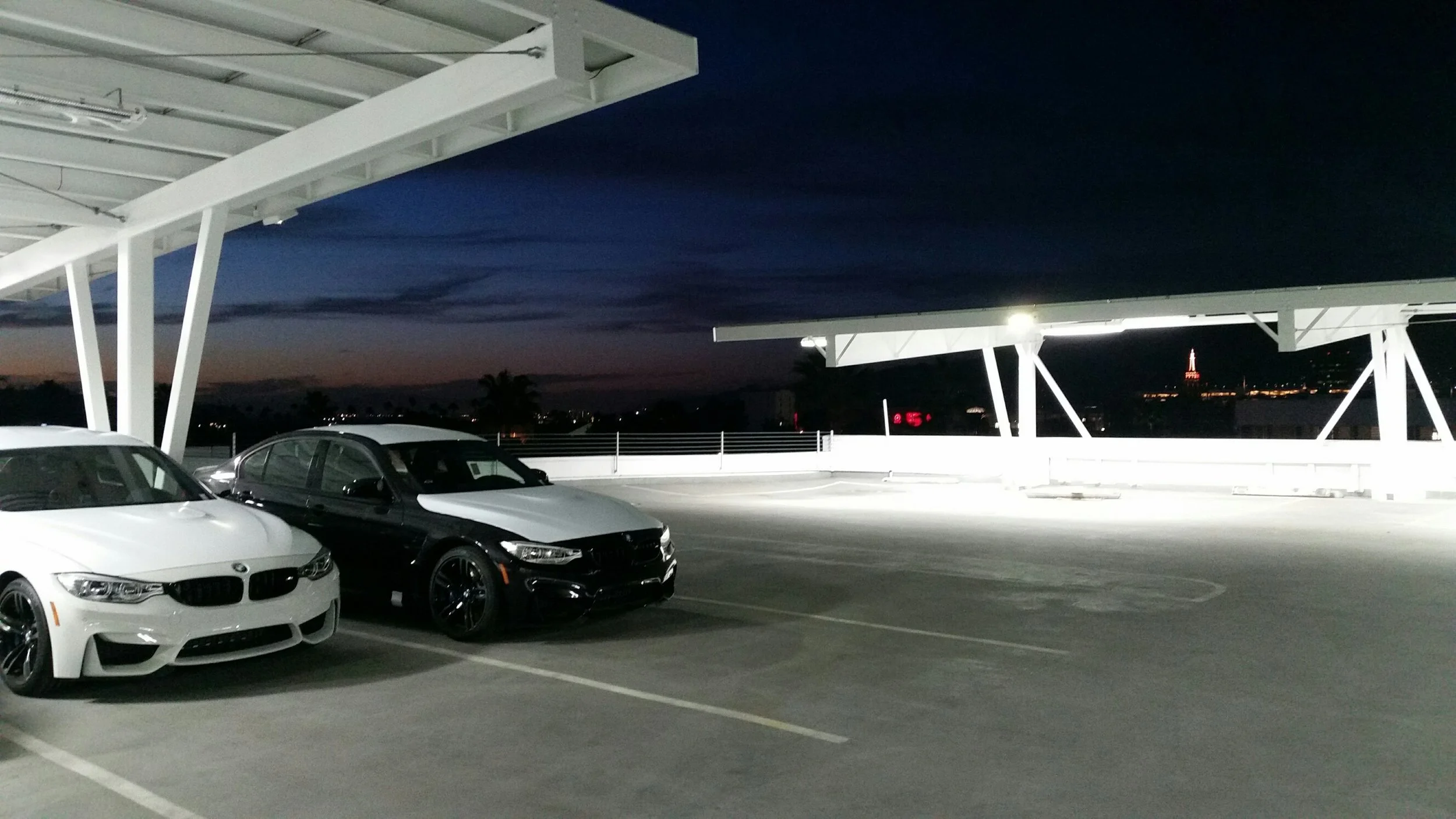

• Lighting and EV Charging Station Capable

• Available in 0°, 5°, 10°
